M90SAEGG

STANDARD ORB MALE SWIVEL SAE - 90° COMPACT ELBOW

MASCHIO GIREVOLE STANDARD ORB SAE - CURVA A 90° COMPATTA

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514/J516

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

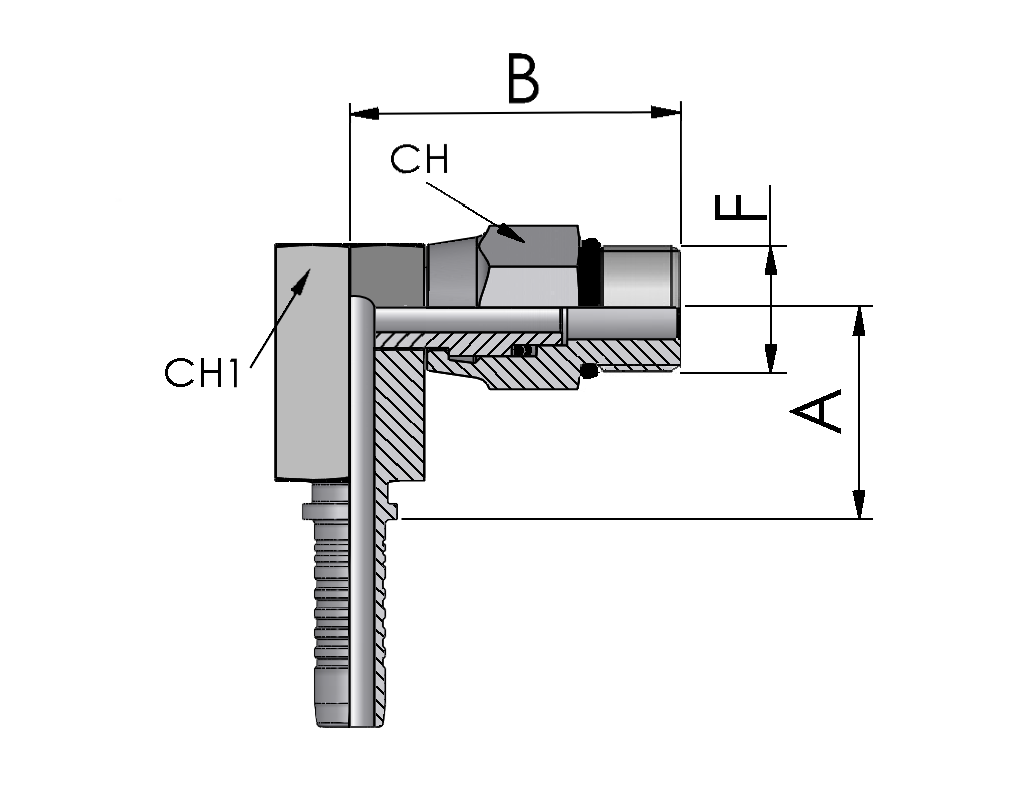

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

CH1

A

B

M90SAEGG1006

9/16 - 18

3/8

10

22

22

31

47

M90SAEGG1206

3/4 - 16

3/8

10

27

25

34

54

M90SAEGG1208

3/4 - 16

1/2

12,5

27

25

33

54

M90SAEGG1608

7/8 - 14

1/2

12,5

27

25

33

56

M90SAEGG2012

1"1/16 -12

3/4

19

34

32

43

67
