B4I

DRY-LOCK SKIVE FERRULE 4SH - R13 -R15

DRY-LOCK BOCCOLA A PRESSARE 4SH - R13 -R15

Thread - Filetto:

Norme - Norma:

Code article
Codice articolo

Hose
Tubo

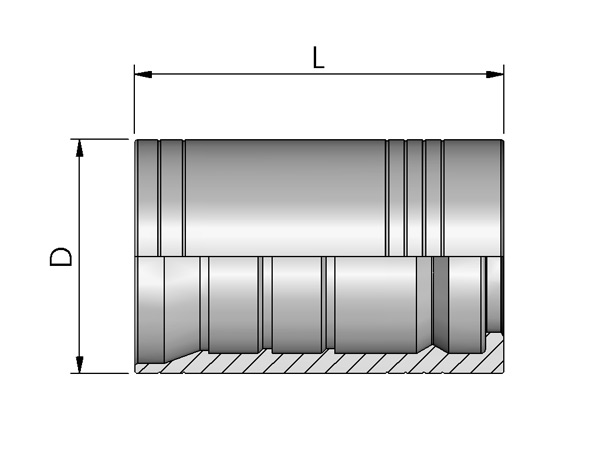

Dimensions (mm)
Dimensioni (mm)

Ins. lenght skive (mm)
L.pelatura interna (mm)

Out. lenght skive (mm)
L.pelatura esterna (mm)

Hose type
Tipo tubo



Inch/Pollici

DN (mm)

D

L







B4I10

5/8

16

34

60

15.5

51

4SH

B4I12

3/4

19

38

60

15,5

52

4SH-R13-R15-ISO

B4I16

1"

25

46

75

18

65

4SH-R13-R15-ISO

B4I20

1"1/4

32

55

88

23

74

4SH-ISO

B4I24

1"1/2

38

62

94

23

81

4SH-ISO

B4I32

2"

51

78

100

31

86

4SH

FERRULE FOR HOSE:
DIN EN 856 4SH
SAE 100 R13 (DN 19;25)
SAE 100 R15 (DN 19;25)
ISO210 (DN 32;38)
ISO280 (DN 19;25;32;38)
ISO350 (DN 19;25)
ISO420 (DN 19;25)

BOCCOLA PER TUBO:
DIN EN 856 4SH
SAE 100 R13 (DN 19;25)
SAE 100 R15 (DN 19;25)
ISO210 (DN 32;38)
ISO280 (DN 19;25;32;38)
ISO350 (DN 19;25)
ISO420 (DN 19;25)
