IC45ES

DKOS 45° - DRY-LOCK METRIC O-RING FEMALE 45°, 24° CONE, HEAVY

DKOS 45° - DRY-LOCK FEMMINA 45° METRICA O-RING, CONO 24°, SERIE PESANTE

Thread - Filetto:METRICO

Norme - Norma:DIN 3865

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

Standpipe
Codolo

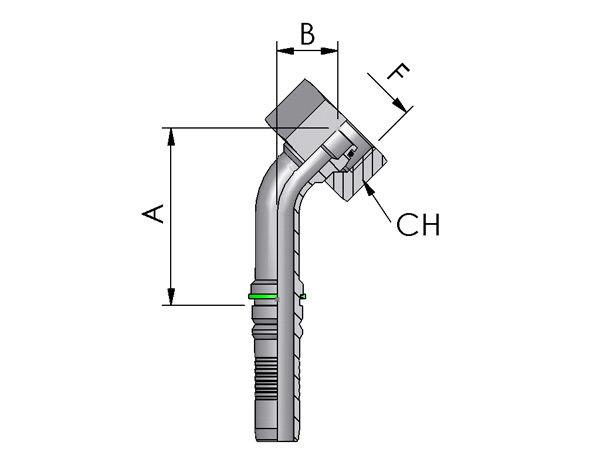

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

mm

CH

A

B

IC45ES2012

M30X2

3/4

19

20

36

78

25

IC45ES2512

M36X2

3/4

19

25

46

80

28

IC45ES2516

M36X2

1"

25

25

46

106

31

IC45ES3016

M42X2

1"

25

30

50

109

33

IC45ES3820

M52X2

1"1/4

32

38

60

140

36
