BUS

SKIVE FERRULE UNIFICATED 1 / 2 ST - R 1 / 2 A - 1 / 2 SN - 2 SC - R16S

BOCCOLA A PRESSARE UNIFICATA A PELARE 1 / 2 ST - R 1 / 2 A - 1 / 2 SN - 2 SC - R16S

Thread - Filetto:

Norme - Norma:

Code article
Codice articolo

Hose
Tubo

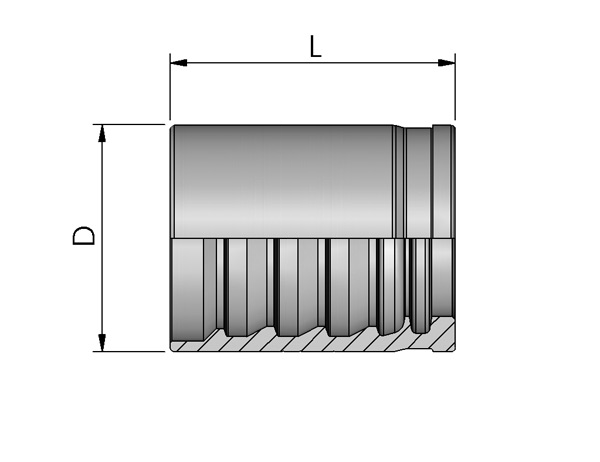

Dimensions (mm)
Dimensioni (mm)

Out. lenght skive (mm)
L.pelatura esterna (mm)

Hose type
Tipo tubo



Inch/Pollici

DN (mm)

D

L





BUS04

1/4

6

19

29

20

1/2ST-R1/2A

BUS05

5/16

8

21

29

20

1/2ST-R1/2A

BUS06

3/8

10

23

32

23

1/2ST-R1/2A

BUS08

1/2

12

27

34

25

1/2ST-R1/2A

BUS10

5/8

16

32

37

27

1/2ST-R1/2A

BUS12

3/4

19

36

43

31

1/2ST-R1/2A

BUS16

1"

25

44

49

34

1/2ST-R1/2A

FERRULE FOR HOSE:
DIN EN 853 1/2ST - 1/2 SN
SAE 100 R1/2A
DIN EN 857 2SC
SAE 100 R16S

BOCCOLA PER TUBO:
DIN EN 853 1/2ST - 1/2 SN
SAE 100 R1/2A
DIN EN 857 2SC
SAE 100 R16S
