TN98

MALE METRIC X MALE METRIC, 24° CONE

MASCHIO METRICO X MASCHIO METRICO, CONO 24°

Thread - Filetto:

Norme - Norma:DIN 2353

Code article
Codice articolo

Standpipe (mm)
Codolo (mm)

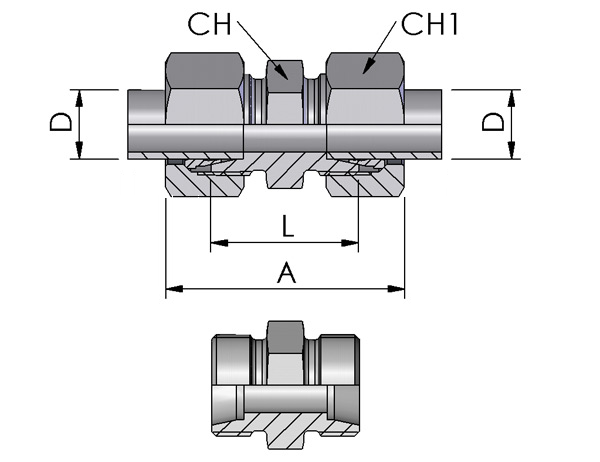

Dimensions (mm)
Dimensioni (mm)



mm

CH

CH1

A

L

TN9806L

6

12

14

39

10

TN9806S

6

14

17

45

16

TN9808L

8

14

17

40

11

TN9808S

8

17

19

47

18

TN9810L

10

17

19

42

13

TN9810S

10

19

22

49

17

TN9812L

12

19

22

43

14

TN9812S

12

22

24

51

19

TN9814S

14

24

27

57

22

TN9815L

15

24

27

46

16

TN9816S

16

27

30

57

21

TN9818L

18

27

32

48

16

TN9820S

20

32

36

66

23

TN9822L

22

32

36

52

20

TN9825S

25

41

46

74

26

TN9828L

28

41

41

24

21

TN9830S

30

46

50

80

27

TN9835L

35

46

50

63

20

TN9838S

38

55

60

90

29

TN9842L

42

55

60

66

21

TO ORDER THE ADAPTORS WITHOUT NUT AND CUTTING RING, ADD THE INITIALS "SC" AT THE END OF THE CODE.

PER ORDINARE GLI ADATTATORI SENZA DADO E OGIVA AGGIUNGERE ALLA FINE DEL CODICE LA SIGLA "SC" (SOLO CORPO).
