PMR

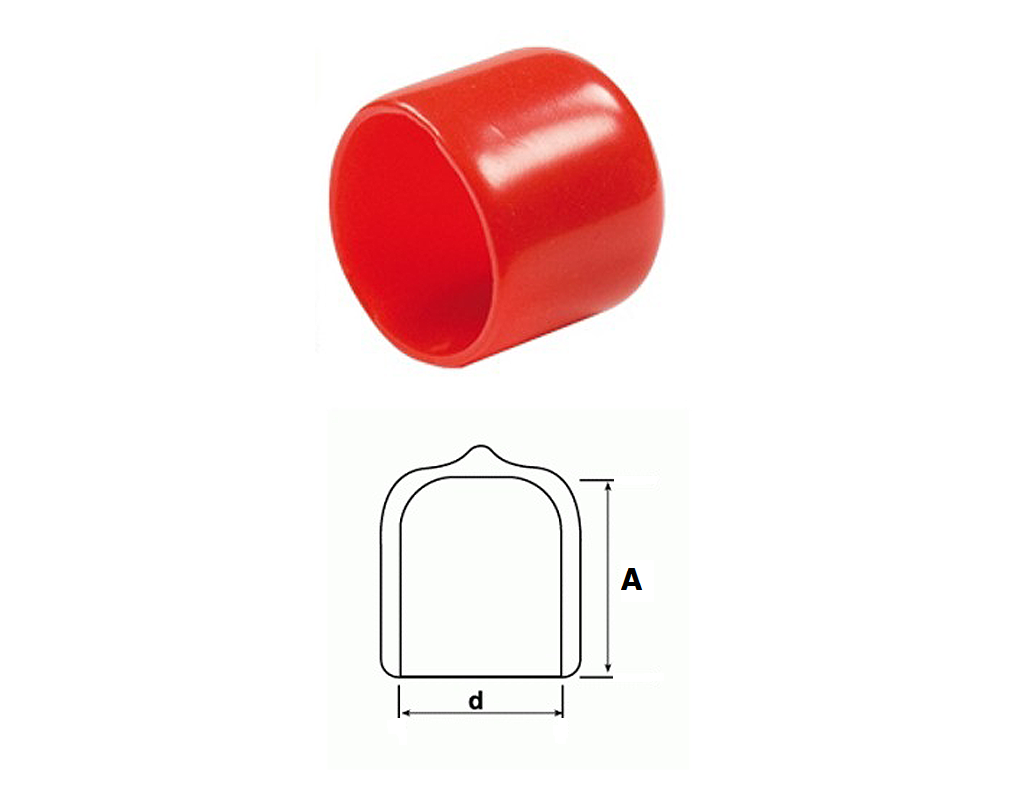

UNIVERSAL SOFT END CAP
TAPPO MORBIDO DI PROTEZIONE UNIVERSALE
Thread - Filetto:
Norme - Norma:
Code article |
Dimensions (mm) | |||
|---|---|---|---|---|
|
A | d | E | R |
PMR8.7X13 |
13 | 8.7 | - | BSP 1/8 |
PMR10.3X13 |
13 | 10.3 | - | UNF 7/16 |
PMR11.1X13 |
13 | 11.1 | - | BSP 1/4-UNF 9/16-M14 |
PMR12.7X13 |
13 | 12.7 | - | - |
PMR13.8X13 |
13 | 13.8 | - | - |
PMR15.2X13 |
13 | 15.2 | 14 | UNF 5/8-M16 |
PMR15.9X13 |
13 | 15.9 | 15 | BSP3/8-UNF11/16; 3/4 |
PMR17.4X13 |
13 | 17.4 | 17 | M18 |
PMR19.1X25 |
25 | 19.1 | - | UNF 13/16-M20 |
PMR21.4X25 |
25 | 21.4 | 19 | BSP 5/8-UNF 7/8-M22 |
PMR22.2X25 |
25 | 22.2 | - | - |
PMR23.8X25 |
25 | 23.8 | 22 | UNS 1"-M24 |
PMR25.4X25 |
25 | 25.4 | 24 | BSP3/4-UN1"1/16-M26 |
PMR26.3X25 |
25 | 26.3 | - | - |
PMR26.9X25 |
25 | 26.9 | - | - |
PMR28.6X25 |
25 | 28.6 | 27 | M30 |
PMR30.2X25 |
25 | 30.2 | 28 | - |
PMR31.8X25 |
25 | 31.8 | 30 | BSP 1"-UN 1"5/16 |
PMR34.9X25 |
25 | 34.9 | 32 | M36 |
PMR38.1X25 |
25 | 38.1 | 36 | - |
PMR41.3X25 |
25 | 41.3 | 38 | BSP1"1/4-UN1"5/8-M42 |
PMR44.5X25 |
25 | 44.5 | 41 | M45 |
PMR47.6X38 |
38 | 47.6 | - | BSP 1"1/2-UN 1"7/8 |
PMR50.8X38 |
38 | 50.8 | 46 | M52 |
PMR53.9X38 |
38 | 53.9 | 50 | - |
PMR57.2X38 |
38 | 57.2 | - | BSP 2" |
PMR60.3X38 |
38 | 60.3 | 55 | - |
PMR63.5X38 |
38 | 63.5 | 60 | UN 2"1/2 |
PMR69.8X50 |
50 | 69.8 | - | - |
COLOUR:
RED
Columns E and R are referred respectively to the hexagon and the thread on which to mount the cap.
COLORE:
ROSSO
Le colonne E ed R si riferiscono rispettivamente all'esagono ed al filetto su cui montare il tappo di protezione.
