CD

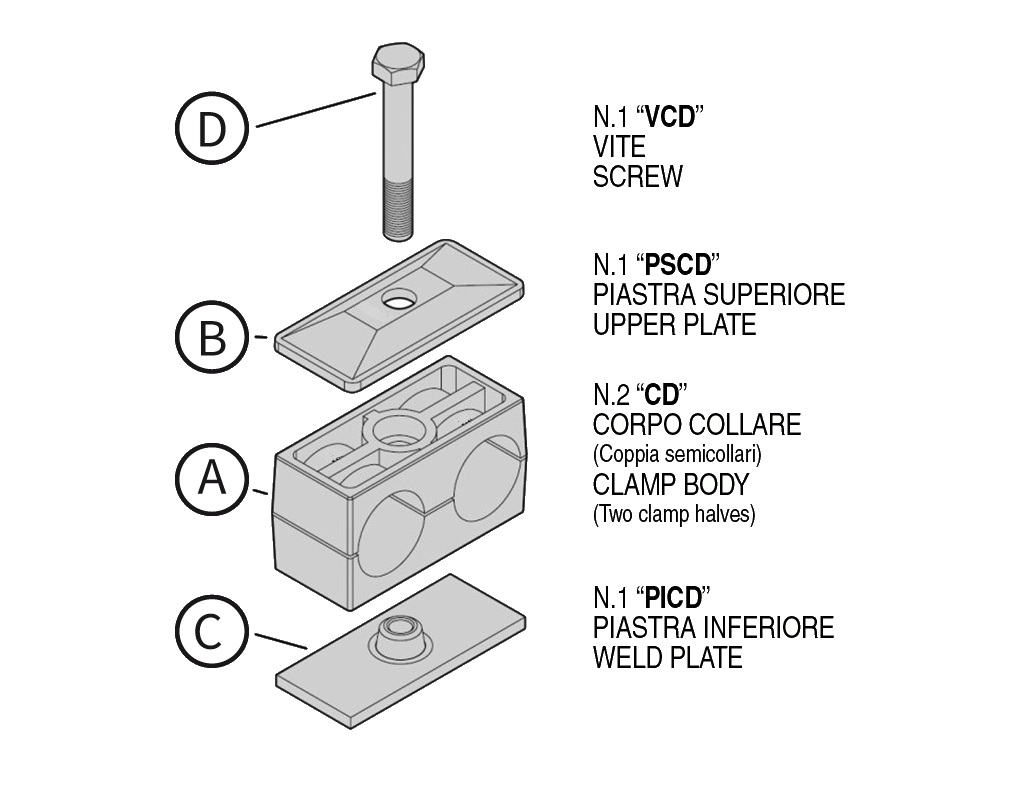

DOUBLE CLAMP

COLLARE DOPPIO

Thread - Filetto:

Norme - Norma:



Codes Components
Codici componenti

Outside Ø hose - pipe - tube (mm)
Ø Esterno tubo (mm)

Clamp
Collare

Upper plate
Piastra superiore

Weld plate
Piastra inferiore

Screw
Vite

Out Ø pipe

A

B

C

D

6

CD06

PSCD1

PICD1

VCD635

8

CD08

PSCD1

PICD1

VCD635

10

CD10

PSCD1

PICD1

VCD635

12

CD12

PSCD1

PICD1

VCD635

14

CD14

PSCD2

PICD2

VCD835

15

CD15

PSCD2

PICD2

VCD835

16

CD16

PSCD2

PICD2

VCD835

18

CD18

PSCD2

PICD2

VCD835

20

CD20

PSCD3

PICD3

VCD845

22

CD22

PSCD3

PICD3

VCD845

25

CD25

PSCD3

PICD3

VCD845

28

CD28

PSCD4

PICD4

VCD850

30

CD30

PSCD4

PICD4

VCD850

33

CD33

PSCD5

PICD5

VCD865

35

CD35

PSCD5

PICD5

VCD865

38

CD38

PSCD5

PICD5

VCD865

42

CD42

PSCD5

PSCD5

VCD865

CLAMP
MATERIAL:
POLYPROPYLENE
COLOUR:
BLUE

PLATES - SCREWS
MATERIAL:
FE360
SURFACE TREATMENT:
Cr3 GALVANIZATION

COLLARE
MATERIALE:
POLIPROPILENE
COLORE:
BLU

PIASTRE - VITI
MATERIALE:
FE360
TRATTAMENTO SUPERFICIALE:
ZINCATURA Cr3
