CS

SINGLE CLAMP

COLLARE SINGOLO

Thread - Filetto:

Norme - Norma:

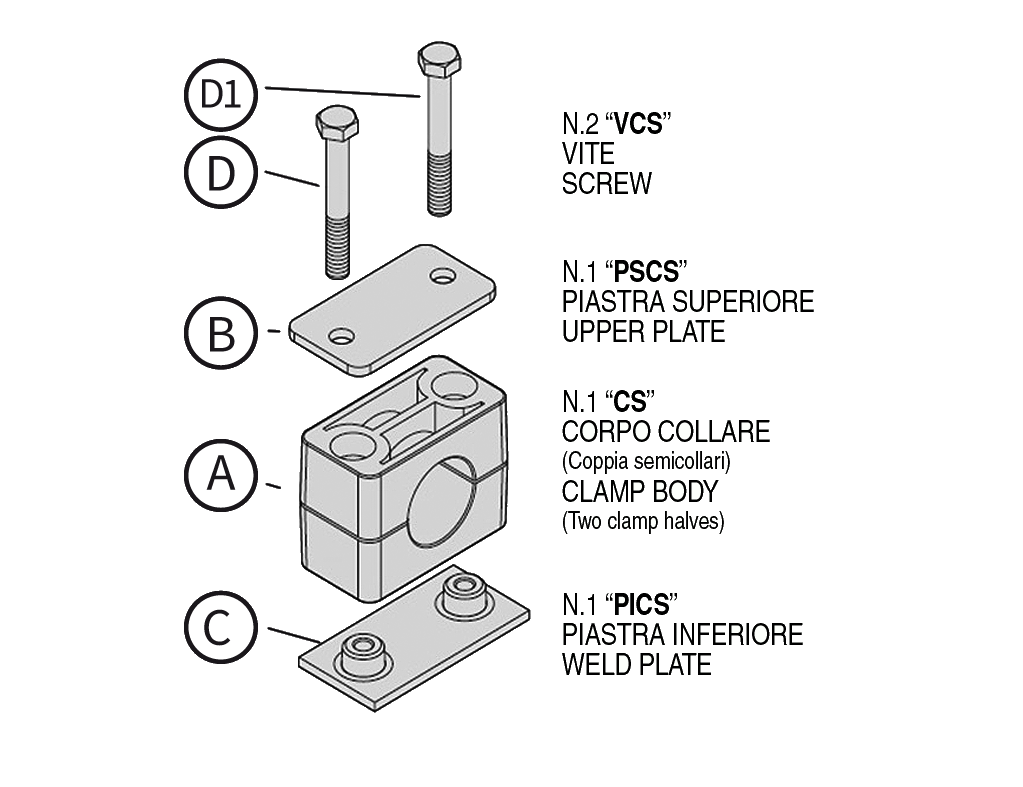

Codes Components
Codici componenti

Outside Ø hose - pipe - tube (mm)
Ø Esterno tubo (mm)

Clamp
Collare

Upper plate
Piastra superiore

Weld plate
Piastra inferiore

Screw
Vite

Socket cap screw (Without upper plate)
Vite brugola (Senza piastra superiore)

Out Ø pipe

A

B

C

D

D1

8

CS08

PSCS2

PICS2

VCS630

VCSB620

10

CS10

PSCS2

PICS2

VCS630

VCSB620

12

CS12

PSCS2

PICS2

VCS630

VCSB620

14

CS14

PSCS3

PICS3

VCS635

VCSB625

15

CS15

PSCS3

PICS3

VCS635

VCSB625

16

CS16

PSCS3

PICS3

VCS635

VCSB625

18

CS18

PSCS3

PICS3

VCS635

VCSB625

20

CS20

PSCS4

PICS4

VCS640

VCSB630

22

CS22

PSCS4

PSCS4

VCS640

VCSB630

23

CS23

PSCS4

PICS4

VCS640

VCSB630

25

CS25

PSCS4

PICS4

VCS640

VCSB630

28

CS28

PSCS5

PICS5

VCS645

VCSB640

30

CS30

PSCS5

PICS5

VCS645

VCSB640

32

CS32

PSCS5

PICS5

VCS645

VCSB640

35

CS35

PSCS6

PICS6

VCS660

VCSB650

38

CS38

PSCS6

PICS6

VCS660

VCSB650

40

CS40

PSCS6

PICS6

VCS660

VCSB650

42

CS42

PSCS6

PICS6

VCS660

VCSB650

45

CS45

PSCS6

PICS6

VCS670

VCSB650

CLAMP
MATERIAL:
POLYPROPYLENE
COLOUR:
BLUE

PLATES - SCREWS
MATERIAL:
FE360
SURFACE TREATMENT:
Cr3 GALVANIZATION
D1:
SOCKET CAP SCREW WITHOUT UPPER PLATE

COLLARE
MATERIALE:
POLIPROPILENE
COLORE:
BLU

PIASTRE - VITI
MATERIALE:
FE360
TRATTAMENTO SUPERFICIALE:
ZINCATURA Cr3
D1:
VITE BRUGOLA SENZA PIASTRA SUPERIORE
