C90J

DKJ 90° - JIC FEMALE 90°, 37° CONE

DKJ 90° - FEMMINA 90° JIC, CONO 37°

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

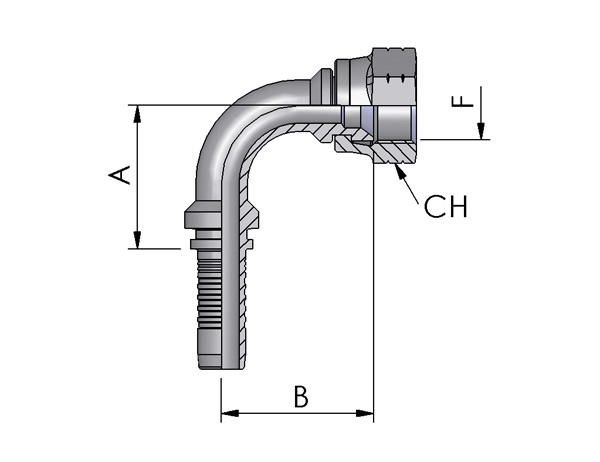

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

C90J0603

7/16-20

3/16

5

15

26

26

C90J0604

7/16-20

1/4

6

15

23

27

C90J0804

1/2-20

1/4

6

17

23

26

C90J0805

1/2-20

5/16

8

17

33

29

C90J1004

9/16-18

1/4

6

19

23

29

C90J1005

9/16-18

5/16

8

19

33

30

C90J1006

9/16-18

3/8

10

19

35

33

C90J1106*

5/8-18

3/8

10

22

35

34

C90J1205

3/4-16

5/16

8

24

33

33

C90J1206

3/4-16

3/8

10

24

35

34

C90J1208

3/4-16

1/2

12

24

39

39

C90J1606

7/8-14

3/8

10

27

35

37

C90J1608

7/8-14

1/2

12

27

39

41

C90J1610

7/8-14

5/8

16

27

48

45

C90J1612**

7/8-14

3/4

19

27

50

52

C90J2008

1"1/16-12

1/2

12

32

39

48

C90J2010

1"1/16-12

5/8

16

32

48

51

C90J2012

1"1/16-12

3/4

19

32

50

51

C90J2212

1"3/16-12

3/4

19

36

50

54

C90J2512

1"5/16-12

3/4

19

41

50

55

C90J2516

1"5/16-12

1"

25

41

72

67

CRIMPED NUT
* C90J1106 45° CONE
** WHILE STOCKS LAST

DADO PINZATO
* C90J1106 CONO DI TENUTA 45°
** ARTICOLO IN ESAURIMENTO
