PC90J

DKJ 90° - JIC FEMALE 90° THRUST WIRE NUT, 37° CONE

DKJ 90° - FEMMINA 90° JIC DADO SPINATO, CONO 37°

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

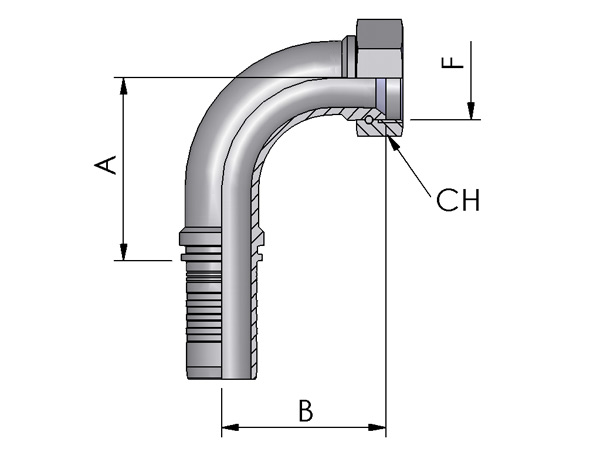

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

PC90J2010*

1"1/16-12

5/8

16

32

47

50

PC90J2012

1"1/16-12

3/4

19

32

50

50

PC90J2516

1"5/16-12

1"

25

41

72

64

PC90J3416

1"5/8-12

1"

25

50

72

71

PC90J3420

1"5/8-12

1"1/4

32

50

88

77

PC90J4020*

1"7/8-12

1"1/4

32

55

100

100

PC90J4024

1"7/8-112

1"1/2

38

55

108

97

PC90J5032

2"1/2-112

2"

51

70

127

121

* WHILE STOCKS LAST

* ARTICOLO IN ESAURIMENTO
