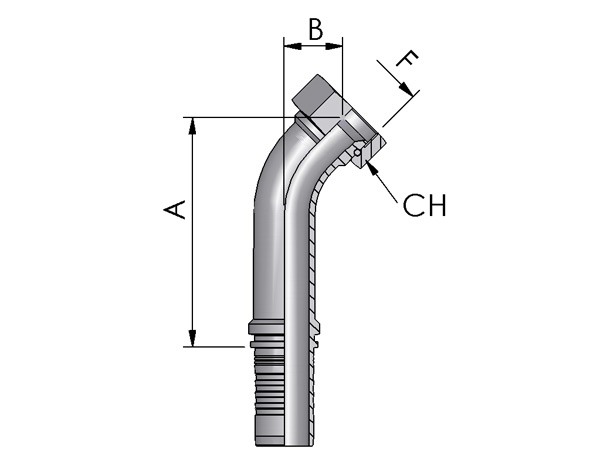

PC45J

DKJ 45° - JIC FEMALE 45° THRUST WIRE NUT, 37° CONE

DKJ 45° - FEMMINA 45° JIC DADO SPINATO, CONO 37°

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

PC45J3420

1"5/8-12

1"1/4

32

50

132

35

PC45J2010*

1"1/16-12

5/8

16

32

80

25

PC45J4020*

1"7/8-12

1"1/4

32

55

108

40

PC45J4024

1"7/8-12

1"1/2

38

55

120

45

PC45J5032

2"1/2-12

2"

51

70

145

62

* WHILE STOCKS LAST

* ARTICOLO IN ESAURIMENTO
