C45ORFS

DKO 45° - ORFS FEMALE 45°

DKO 45° - FEMMINA 45° ORFS

Thread - Filetto:UNF-UN

Norme - Norma:SAE J1453

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

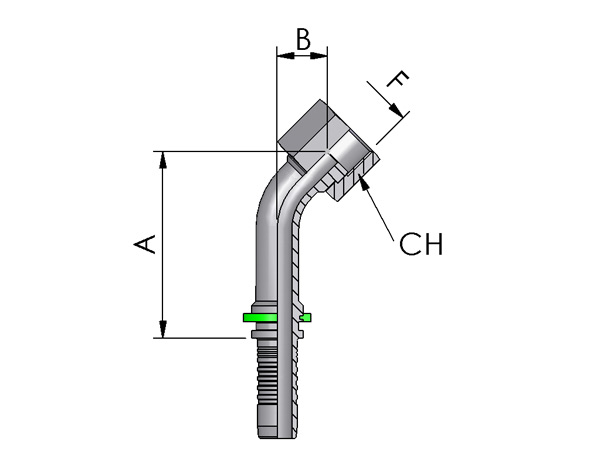

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

C45ORFS1004

9/16-18

1/4

6

17

47

12

C45ORFS1104

11/16-16

1/4

6

22

48

13

C45ORFS1105

11/16-16

5/16

8

22

52

13

C45ORFS1106

11/16-16

3/8

10

22

54

14

C45ORFS1306

13/16-16

3/8

10

24

56

16

C45ORFS1308

13/16-16

1/2

12

24

61

17

C45ORFS1808

1"-14

1/2

12

30

64

20

C45ORFS1810

1"-14

5/8

16

30

71

20

C45ORFS1812*

1"-14

3/4

19

30

85

35

C45ORFS2208

1"3/16-12

1/2

12

36

66

22

C45ORFS2210

1"3/16-12

5/8

16

36

73

22

C45ORFS2212

1"3/16-12

3/4

19

36

78

21

C45ORFS2612

1"7/16-12

3/4

19

41

82

26

C45ORFS2616

1"7/16-12

1"

25

41

108

29

C45ORFS3620

1"11/16-12

1"1/4

32

50

129

32

C45ORFS4624

2"-12

1"1/2

38

60

151

35

* WHILE STOCKS LAST

* ARTICOLO IN ESAURIMENTO
