BDS

DRY-SPIRAL SKIVE FERRULE 4SP - R13 - R15 - ISO18752

DRY-SPIRAL BOCCOLA A PRESSARE 4SP - R13 - R15 - ISO18752

Thread - Filetto:

Norme - Norma:

Code article
Codice articolo

Hose
Tubo

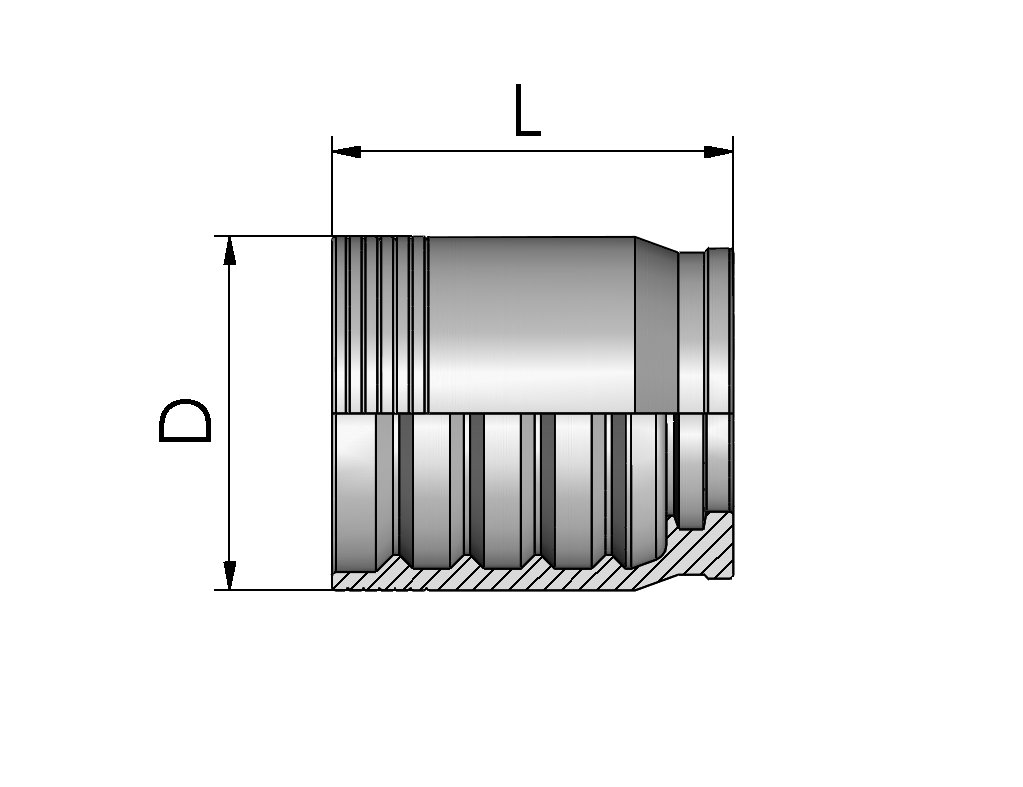

Dimensions (mm)
Dimensioni (mm)

Hose type
Tipo tubo



Inch/Pollici

DN (mm)

D

L



BDS20

1"1/4

32

58

72

4SP-R13/15-ISO

BDS24

1"1/2

38

68

90

4SP-R13/15-ISO

BDS32

2"

51

84

105

4SP-R13-ISO

FERRULE FOR HOSE::
DIN EN 856 4SP
SAE 100 R13
SAE 100 R15 (DN 32;38)
ISO350
ISO420 (DN 32)

BOCCOLA PER TUBO:
DIN EN 856 4SP
SAE 100 R13
SAE 100 R15 (DN 32;38)
ISO350
ISO420 (DN 32)
