DFJDE

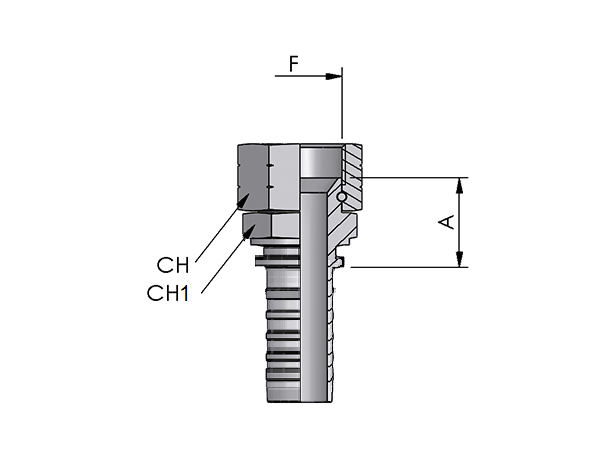

DKJ - DRY-SPIRAL JIC FEMALE THRUST WIRE NUT DOUBLE HEXAGON, 37° CONE

DKJ - DRY-SPIRAL FEMMINA JIC DADO SPINATO DOPPIO ESAGONO, CONO 37°

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514 0

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

CH1

A

DFJDE1208

3/4-16

1/2

12

22

19

29.1

DFJDE1608

7/8-14

1/2

12

27

22

31.3

DFJDE1610

7/8-14

5/8

16

27

24

31.1

DFJDE2010

1"1/16-12

5/8

16

32

27

34.6

DFJDE1612

7/8-14

3/4

19

27

27

33

DFJDE2012

1"1/16-12

3/4

19

32

27

34

DFJDE2212

1"3/16-12

3/4

19

36

30

35.5

DFJDE2016

1"1/16-12

1"

25

32

32

36.5

DFJDE3416

1"5/8-12

1"

25

50

41

46

DFJDE2520

1"5/16-12

1"1/4

32

41

41

45.5

DFJDE2512

1"5/16-12

3/4

19

41

32

38

DFJDE3420

1"5/8-12

1"1/4

32

50

41

48

DFJDE2516

1"5/16-12

1"

25

41

32

39.5

DFJDE4020

1"7/8-12

1"1/4

32

60

46

51

DFJDE4024

1"7/8-12

1"1/2

38

60

46

53

DFJDE5024

2"1/2-12

1"1/2

38

75

60

66

DFJDE5032

2"1/2-12

2"

51

75

60

69
