DC45J

DKJ 45° - DRY-SPIRAL JIC FEMALE 45° THRUST WIRE NUT, 37° CONE

DKJ 45° - DRY-SPIRAL FEMMINA 45° JIC DADO SPINATO, CONO 37°

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514 0

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

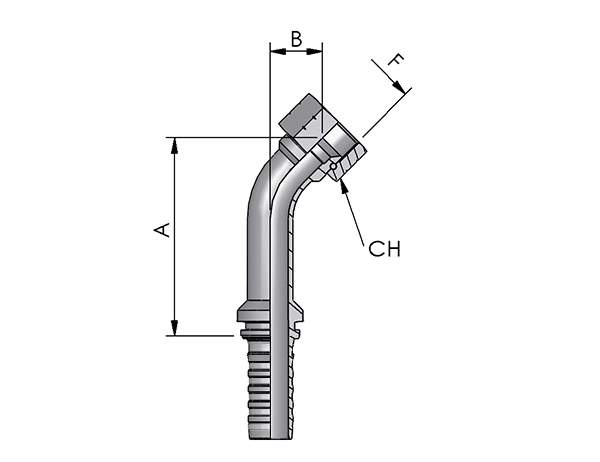

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

DC45J1208

3/4-16

1/2

12

22

65

20

DC45J1608

7/8-14

1/2

12

27

66

21

DC45J1610

7/8-14

5/8

16

27

80

24

DC45J2010

1"1/16-12

5/8

16

32

80

25

DC45J1612

7/8-14

3/4

19

27

66

28

DC45J2012

1"1/16-12

3/4

19

32

63

25

DC45J2212

1"3/16-12

3/4

19

36

63

25

DC45J2512

1"5/16-12

3/4

19

41

66

28

DC45J2016

1"1/16-12

1"

25

32

85

35

DC45J2516

1"5/16-12

1"

25

41

82

32

DC45J3416

1"5/8-12

1"

25

50

83

33

DC45J2520

1"5/16-12

1"1/4

32

41

100

41

DC45J3420

1"5/8-12

1"1/4

32

50

98

38

DC45J4020

1"7/8-12

1"1/4

32

60

99

39

DC45J4024

1"7/8-12

1"1/2

38

60

118

46

DC45J5024

2"1/2-12

1"1/2

38

75

122

50

DC45J5032

2"1/2-12

2"

51

75

157

62
