TUBOY42

YOKOHAMA VERSATRAN HOSE ISO18752-420 BAR

YOKOHAMA TUBO VERSATRAN ISO18752-420 BAR

Thread - Filetto:

Norme - Norma:ISO18752; DN32 - 38: SAE 100 R15

Code article
Codice articolo

Inside ø
ø Interno

ø Braid
ø Treccia

Out ø
ø Est.

Working pressure
Pressione esercizio

Burst pressure
Pressione scoppio

Bend Radius
Raggio curvatura

Weight
Peso

Ferrule
Boccola



Inch/Pollici

DN (mm)

mm

mm

bar

psi

bar

mm

kg/mt



TUBOY08SP

1/2

12

20.7

23.1

420

6000

1680

140

0.86

BHR08

TUBOY1042

5/8

16

24.1

26.5

420

6000

1680

160

1

BHR10

TUBOY12SH

3/4

19

28

30.4

420

6000

1680

190

1.34

BHR12

TUBOY16SH

1\"

25

35

37.5

420

6000

1680

240

1.93

BHR16

TUBOY2015

1"1/4

32

45.2

48.4

420

6000

1680

280

3.67

BHR20

TUBOY2415

1"1/2

38

52.5

56.0

420

6000

1680

400

4.20

BDS24

TUBOY3242

2"

51

67.5

71.1

420

6000

1680

500

7.20

BDS32

TUBE:
SYNTHETIC RUBBER, RESISTANT AGAINST HYDRAULIC FLUIDS

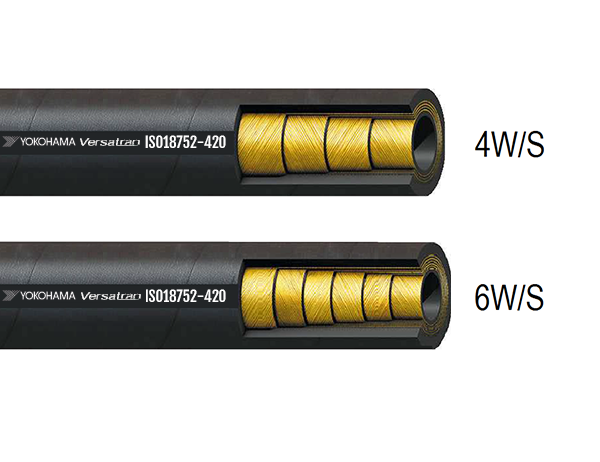

REINFORCEMENT:
FOUR WIRE SPIRAL DN 12 - DN 25
SIX WIRE SPIRAL DN 32 - DN 51
COVER:
HIGH ABRASION AND WEATHER RESISTANT SYNTHETIC RUBBER (MSHA APPROVED)
TEMPERATURE RANGE (FLUID):
FROM -40 °C TO 120°C
DN51 NOT COMPATIBLE WITH DRYLOCK RANGE FITTINGS

SOTTOSTRATO:
GOMMA SINTETICA RESISTENTE AGLI OLII
RINFORZO:
QUATTRO SPIRALI DN 12 - DN 25
SEI SPIRALI DN 32 - DN 51
COPERTURA:
GOMMA SINTETICA CON ALTA RESISTENZA ALL’ABRASIONE E AGLI AGENTI ATMOSFERICI (OMOLOGATO MSHA)
RANGE DELLE TEMPERATURE (FLUIDO):
DA -40°C A +120°C
DN51 NON ASSEMBLABILE CON RACCORDI GAMMA DRYLOCK
