TUBOY1T

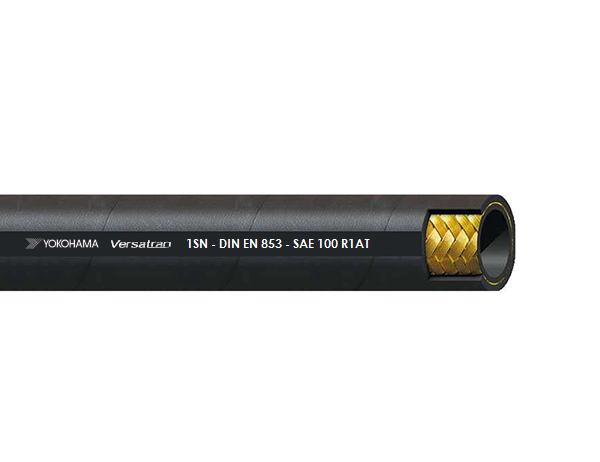

YOKOHAMA VERSATRAN HOSE 1 WIRE BRAID 1SN - SAE 100 R1AT

YOKOHAMA TUBO VERSATRAN 1 TRECCIA 1SN - SAE 100 R1AT

Thread - Filetto:

Norme - Norma:EN 853 1SN - SAE 100 R1AT

Code article
Codice articolo

Inside ø
ø Interno

ø Braid
ø Treccia

Out ø
ø Est.

Working pressure
Pressione esercizio

Burst pressure
Pressione scoppio

Bend Radius
Raggio curvatura

Weight
Peso

Ferrule
Boccola



Inch/Pollici

DN (mm)

mm

mm

bar

psi

bar

mm

kg/mt



TUBOY041T

1/4

6

11.1

13.4

225

3265

900

100

0.23

BUN04

TUBOY051T

5/16

8

12.6

15

215

3120

860

115

0.27

BUN05

TUBOY061T

3/8

10

15.1

17.4

180

2610

720

125

0.34

BUN06

TUBOY081T

1/2

12

18.2

20.4

160

2320

640

180

0.41

BUN08

TUBOY101T

5/8

16

21.4

23.8

130

1885

520

205

0.51

BUN10

TUBOY121T

3/4

19

25.4

27.8

105

1525

420

240

0.63

BUN12

TUBOY161T

1"

25

33.3

35.6

88

1275

352

300

0.94

BUN16

TUBOY201T

1"1/4

31

40.5

43.5

43

625

172

420

1.20

BUN20

TUBOY241T

1"1/2

38

46.8

50.2

35

510

140

500

1.50

BUN24

TUBOY321T

2"

51

60.3

64.1

26

380

104

630

2.10

BUN32

FROM DN31 TO DN51 RESPECT NORME SAE 100 R1AT
TUBE:
SYNTHETIC RUBBER, RESISTANT AGAINST HYDRAULIC FLUIDS
REINFORCEMENT:
ONE BRAID OF HIGH TENSILE STEEL WIRE
COVER:
ABRASION AND WEATHER RESISTANT SYNTHETIC RUBBER
TEMPERATURE RANGE (FLUID):
FROM -40°C TO 100°C

DA DN31 A DN51 RISPETTA NORMA SAE 100 R1AT
SOTTOSTRATO:
GOMMA SINTETICA RESISTENTE AGLI OLII
RINFORZO:
UNA TRECCIA DI ACCIAIO AD ALTA TENACITÀ
COPERTURA:
GOMMA SINTETICA RESISTENTE ALL’ABRASIONE E AGLI AGENTI ATMOSFERICI
RANGE DELLE TEMPERATURE (FLUIDO):
DA -40°C A +100°C
