UBFJDE

DKJ - JIC FEMALE DOUBLE HEXAGON, 37° CONE

DKJ - FEMMINA DOPPIO ESAGONO, CONO 37°

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

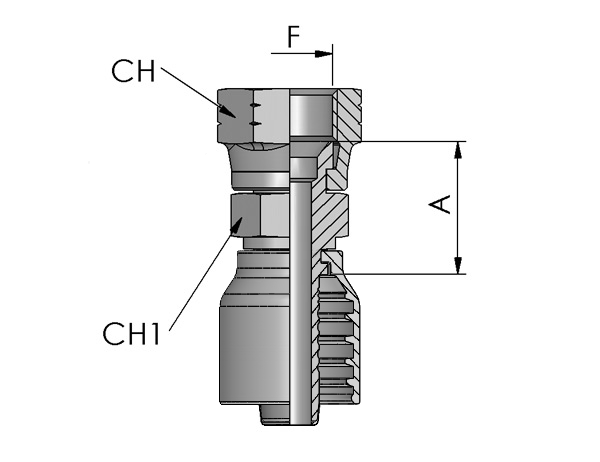

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

CH1

A

UBFJDE0604

7/16-20

1/4

6

15

12

21

UBFJDE0804

1/2-20

1/4

6

17

14

21

UBFJDE1004

9/16-18

1/4

6

19

14

22.5

UBFJDE1006

9/16-18

3/8

10

19

14

20.5

UBFJDE1106

5/8-18

3/8

10

22

19

23.9

UBFJDE1204

3/4-16

1/4

6

24

19

24.5

UBFJDE1206

3/4-16

3/8

10

24

19

25

UBFJDE1208

3/4-16

1/2

12

24

19

23

UBFJDE1606

7/8-14

3/8

10

27

22

28.2

UBFJDE1608

7/8-14

1/2

12

27

22

29

UBFJDE1610

7/8-14

5/8

16

27

22

26.3

UBFJDE1612

7/8-14

3/4

19

27

27

31.3

UBFJDE2008

1"1/16-12

1/2

12

32

27

33.1

UBFJDE2010

1"1/16-12

5/8

16

32

27

33.1

UBFJDE2012

1"1/16-12

3/4

19

32

27

34

UBFJDE2212

1"3/16-12

3/4

19

36

30

34.5

UBFJDE2512

1"5/16-12

3/4

19

41

32

36,3

UBFJDE2516

1"5/16-12

1"

25

41

32

37.3

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

CRIMPED NUT

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

DADO PINZATO
