UBC90J

DKJ 90° - JIC FEMALE 90°, 37° CONE

DKJ 90° - FEMMINA 90° JIC, CONO 37°

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

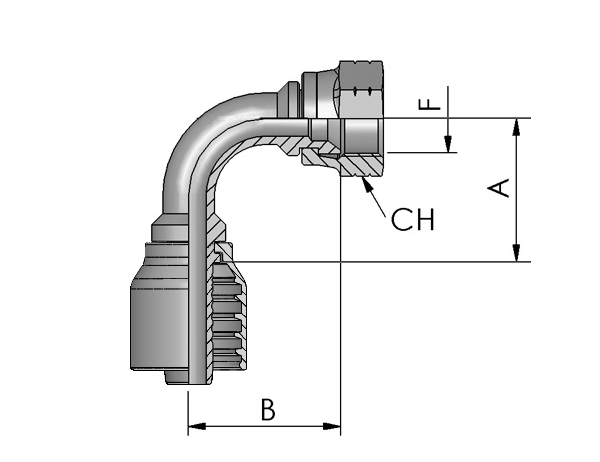

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

UBC90J0604

7/16-20

1/4

6

15

23

27

UBC90J0804

1/2-20

1/4

6

17

23

26

UBC90J1004

9/16-18

1/4

6

19

23

29

UBC90J1006

9/16-18

3/8

10

19

35

33

UBC90J1106*

5/8-18

3/8

10

22

35

34

UBC90J1206

3/4-16

3/8

10

24

35

34

UBC90J1208

3/4-16

1/2

12

24

39

39

UBC90J1606

7/8-14

3/8

10

27

35

37

UBC90J1608

7/8-14

1/2

12

27

39

41

UBC90J1610

7/8-14

5/8

16

27

48

45

UBC90J1612

7/8-14

3/4

19

27

50

52

UBC90J2008

1"1/16-12

1/2

12

32

39

48

UBC90J2010

1"1/16-12

5/8

16

32

48

51

UBC90J2012

1"1/16-12

3/4

19

32

50

51

UBC90J2212

1"3/16-12

3/4

19

36

58

64

UBC90J2512

1"5/16-12

3/4

19

41

50

55

UBC90J2516

1"5/16-12

1"

25

41

72

67

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

CRIMPED NUT
*C90J1106 45°CONE

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

DADO PINZATO
*C90J1106 CONO 45°
