UBPC90J

DKJ 90° - JIC FEMALE 90° THRUST WIRE NUT, 37° CONE

DKJ 90° - FEMMINA 90° JIC DADO SPINATO, CONO 37°

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

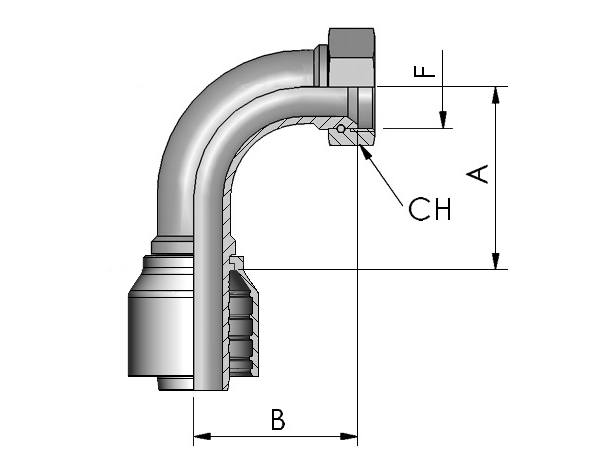

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

UBPC90J2010*

1"1/16-12

5/8

16

32

47

50

UBPC90J2012

1"1/16-12

3/4

19

32

50

50

UBPC90J2516

1"5/16-12

1"

25

41

72

64

UBPC90J3416

1"5/8-12

1"

25

50

72

71

UBPC90J3420

1"5/8-12

1"1/4

32

50

88

77

UBPC90J4020*

1"7/8-12

1"1/4

32

55

100

100

UBPC90J4024

1"7/8-12

1"1/2

38

55

108

97

UBPC90J5032

2"1/2-12

2"

51

70

127

121

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
