UBPC45J

DKJ 45° - JIC FEMALE 45° THRUST WIRE NUT, 37° CONE

DKJ 45° - FEMMINA 45° JIC DADO SPINATO, CONO 37°

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

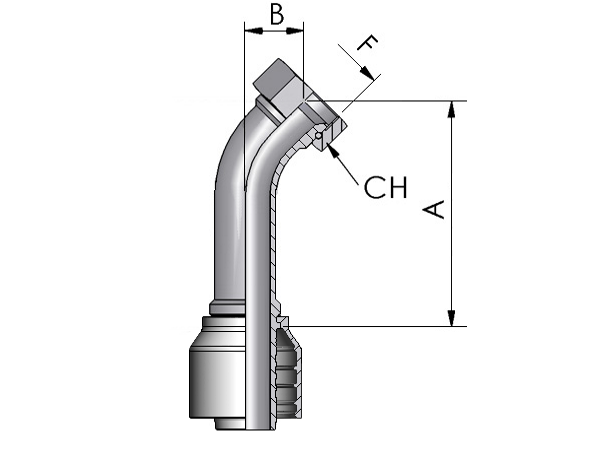

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

UBPC45J2010

1"1/16-12

5/8

16

32

80

25

UBPC45J2012

1"1/16-12

3/4

19

32

80

25

UBPC45J2516

1"5/16-12

1"

25

41

108

29

UBPC45J3420

1"5/8-12

1"1/4

32

50

132

35

UBPC45J4020

1"7/8-12

1"1/4

32

55

108

40

UBPC45J4024

1"7/8-12

1"1/2

38

55

120

45

UBPC45J5032

2"1/2-12

2"

51

70

145

62

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
