UBC90ORFS

DKO 90° - ORFS FEMALE 90°

DKO 90° - FEMMINA 90° ORFS

Thread - Filetto:UNF-UN

Norme - Norma:SAE J1453

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

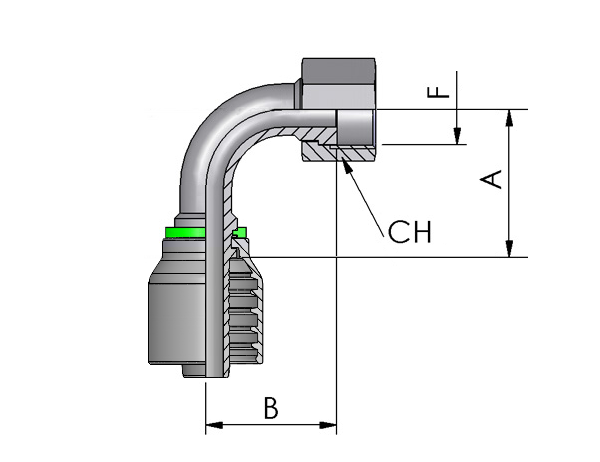

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

UBC90ORFS1004

9/16-18

1/4

6

17

33

24

UBC90ORFS1104

11/16-16

1/4

6

22

33

26

UBC90ORFS1106

11/16-16

3/8

10

22

38

29

UBC90ORFS1306

13/16-16

3/8

10

24

38

29

UBC90ORFS1308

13/16-16

1/2

12

24

40

36

UBC90ORFS1808

1"-14

1/2

12

30

40

41

UBC90ORFS1810

1"-14

5/8

16

30

46

45

UBC90ORFS2208

1"3/16-12

1/2

12

36

40

46

UBC90ORFS2210

1"3/16-12

5/8

16

36

46

46

UBC90ORFS2212

1"3/16-12

3/4

19

36

52

50

UBC90ORFS2612

1"7/16-12

3/4

19

41

52

52

UBC90ORFS2616

1"7/16-12

1"

25

41

72

63

UBC90ORFS3620

1"11/16-12

1"1/4

32

50

88

73

UBC90ORFS4624

2"-12

1"1/2

38

60

105

98

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
