UBCM90ORFS

DKO 90° - ORFS MEDIUM FEMALE 90°

DKO 90° - FEMMINA 90° ORFS MEDIA

Thread - Filetto:UNF-UN

Norme - Norma:SAE J1454 - SAE J516

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

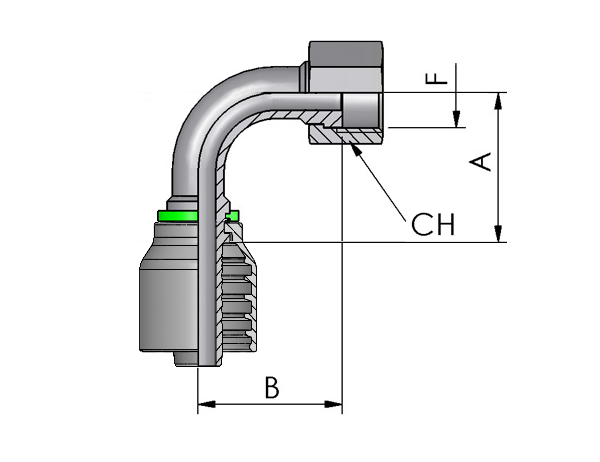

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

UBCM90ORFS1004

9/16-18

1/4

6

17

32.9

38

UBCM90ORFS1106

11/16-16

3/8

10

22

37.5

38

UBCM90ORFS1306

13/16-16

3/8

10

24

37.5

41

UBCM90ORFS1308

13/16-16

1/2

12

24

40.05

41

UBCM90ORFS1808

1"-14

1/2

12

30

40.05

47

UBCM90ORFS1810

1"-14

5/8

16

30

46.05

47

UBCM90ORFS2210

1"3/16-12

5/8

16

36

46.05

58

UBCM90ORFS2212

1"3/16-12

3/4

19

36

50

58

UBCM90ORFS2616

1"7/16-12

1"

25

41

71.6

71

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
