UBC45ES

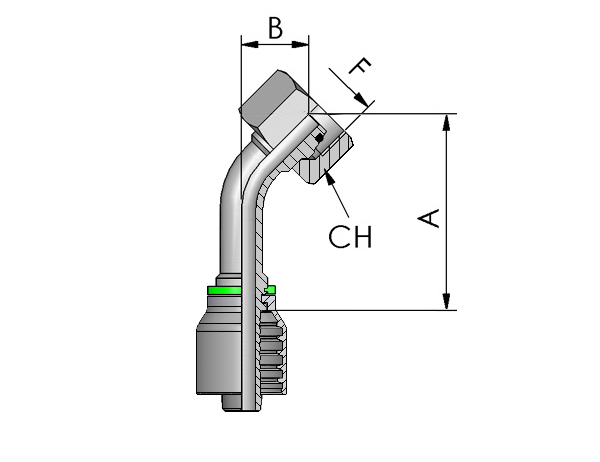

DKOS 45° - METRIC O-RING FEMALE 45°, 24° CONE, HEAVY

DKOS 45° - FEMMINA 45° METRICA O-RING, CONO 24°, SERIE PESANTE

Thread - Filetto:METRICO - METRIC

Norme - Norma:DIN 3865

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

Standpipe
Codolo

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

mm

CH

A

B

UBC45ES0604*

M14X1,5

1/4

6

6

17

47

22

UBC45ES0804

M16x1,5

1/4

6

8

19

50

16

UBC45ES1004

M18x1,5

1/4

6

10

22

51

18

UBC45ES1006*

M18x1,5

3/8

10

10

22

63

25

UBC45ES1204

M20x1,5

1/4

6

12

24

53

17

UBC45ES1206

M20x1,5

3/8

10

12

24

58

18

UBC45ES1406

M22x1,5

3/8

10

14

27

59

20

UBC45ES1608

M24x1,5

1/2

12

16

30

64

22

UBC45ES2010

M30x2

5/8

16

20

36

77

26

UBC45ES2012

M30x2

3/4

19

20

36

82

25

UBC45ES2512

M36x2

3/4

19

25

46

84

28

UBC45ES2516

M36x2

1"

25

25

46

110

31

UBC45ES3016

M42x2

1"

25

30

50

115

35

UBC45ES3020

M42x2

1"1/4

32

30

50

145

37

UBC45ES3820

M52x2

1"1/4

32

38

60

146

38

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

* CRIMPED NUT

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
