UBFLPI6

SFS - SAE FLANGE 6000 PSI

SFS - FLANGIA SAE 6000 PSI

Thread - Filetto:

Norme - Norma:SAE J518

Code article
Codice articolo

Hose
Tubo

Flange
Flangia

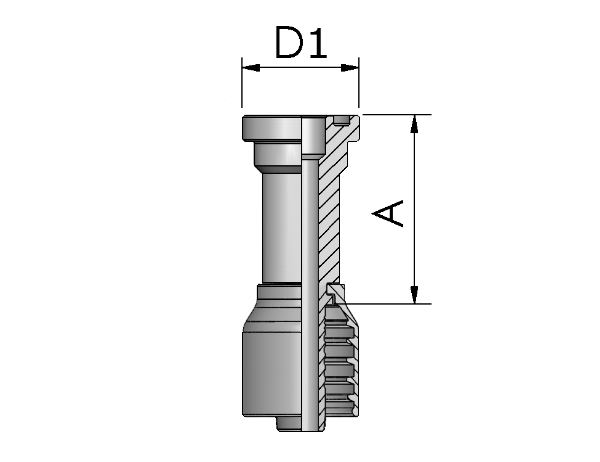

Dimensions (mm)
Dimensioni (mm)



Inch/Pollici

DN (mm)



D1

A

UBFLPI60808

1/2

12

1/2

31.7

48.8

UBFLPI61208

1/2

12

3/4

41.3

56,7

UBFLPI61210

5/8

16

3/4

41.3

54,7

UBFLPI61212

3/4

19

3/4

41.3

58,5

UBFLPI61612

3/4

19

1"

47.6

64.6

UBFLPI61616

1"

25

1"

47.6

66.1

UBFLPI62016

1"

25

1"1/4

54

71.1

UBFLPI62020

1"1/4

32

1"1/4

54

72.3

UBFLPI62420

1"1/4

32

1"1/2

63.5

81.8

UBFLPI62424

1"1/2

38

1"1/2

63.5

81.4

UBFLPI63232

2"

51

2"

79.4

100.5

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
