UBFLPIR690

SFC 90° - SUPERCAT FLANGE 90°

SFC 90° - FLANGIA 90° SUPERCAT

Thread - Filetto:

Norme - Norma:

Code article
Codice articolo

Hose
Tubo

Flange
Flangia

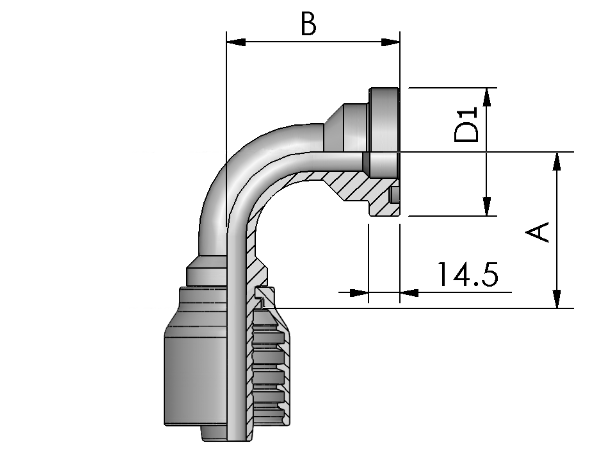

Dimensions (mm)
Dimensioni (mm)



Inch/Pollici

DN (mm)



D1

A

B

UBFLPIR6901212

3/4

19

3/4

41.3

50

60

UBFLPIR6901612

3/4

19

1"

47.6

50

65

UBFLPIR6901616

1"

25

1"

47.6

72

76

UBFLPIR6902016

1"

25

1"1/4

54

72

82

UBFLPIR6902020

1"1/4

32

1"1/4

54

88

88

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
