UBFLPIR645

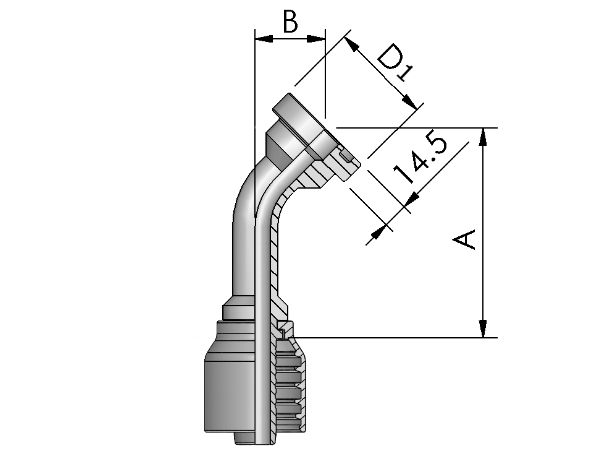

SFC 45° - SUPERCAT FLANGE 45°

SFC 45° - FLANGIA 45° SUPERCAT

Thread - Filetto:

Norme - Norma:

Code article
Codice articolo

Hose
Tubo

Flange
Flangia

Dimensions (mm)
Dimensioni (mm)



Inch/Pollici

DN (mm)



D1

A

B

UBFLPIR6451212

3/4

19

3/4

41.3

87

31

UBFLPIR6451612

3/4

19

1"

47.6

91

35

UBFLPIR6451616

1"

25

1"

47.6

117

38

UBFLPIR6452016

1"

25

1"1/4

54

122

42

UBFLPIR6452020

1"1/4

32

1"1/4

54

140

43

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
