UBCOD

BEL/BES - METRIC STANDPIPE

BEL/BES - CODOLO METRICO DIRITTO

Thread - Filetto:

Norme - Norma:DIN 2353



Code article
Codice articolo

Hose
Tubo

D Standpipe
D Codolo

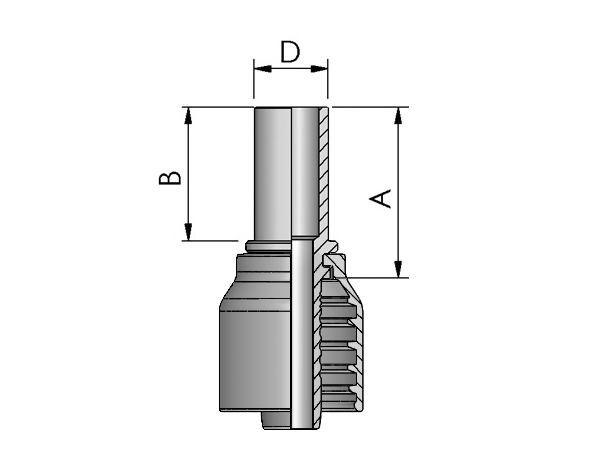

Dimensions (mm)
Dimensioni (mm)



Inch/Pollici

DN (mm)

mm

A

B

UBCOD0604

1/4

6

6

31.2

24

UBCOD0804

1/4

6

8

31.2

24

UBCOD1004

1/4

6

10

31.2

24

UBCOD1006

3/8

10

10

31.5

24

UBCOD1204

1/4

6

12

32

27.3

UBCOD1206

3/8

10

12

32.5

25

UBCOD1208

1/2

12

12

33.1

25

UBCOD1406

3/8

10

14

36.3

29

UBCOD1408

1/2

12

14

37.1

29

UBCOD1506

3/8

10

15

36.5

29

UBCOD1508

1/2

12

15

36.8

29

UBCOD1608

1/2

12

16

37.1

29

UBCOD1808

1/2

12

18

37.1

29

UBCOD1810

5/8

16

18

36.8

29

UBCOD1812

3/4

19

18

37.5

29

UBCOD2008

1/2

12

20

43.8

38.5

UBCOD2010

5/8

16

20

43.8

36

UBCOD2012

3/4

19

20

44.5

36

UBCOD2210

5/8

16

22

36.8

29

UBCOD2212

3/4

19

22

37.5

29

UBCOD2512

3/4

19

25

44.5

36

UBCOD2516

1"

25

25

46.1

36

UBCOD2816

1"

25

28

45.8

36

UBCOD3016

1"

25

30

46.1

36

UBCOD3020

1"1/4

32

30

51

38

UBCOD3520

1"1/4

32

35

46

35

UBCOD3820

1"1/4

32

38

53

40

UBCOD3824

1"1/2

38

38

58

45

UBCOD4224

1"1/2

38

42

55

42

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
