UBCOD45

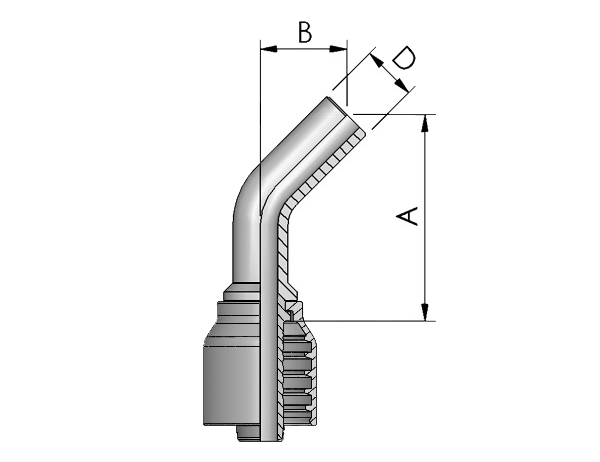

BEL/BES 45° - METRIC STANDPIPE 45°

BEL/BES 45° - CODOLO METRICO 45°

Thread - Filetto:

Norme - Norma:DIN 2353



Code article
Codice articolo

Hose
Tubo

D Standpipe
D Codolo

Dimensions (mm)
Dimensioni (mm)



Inch/Pollici

DN (mm)

mm

A

B

UBCOD450604

1/4

6

6

40

22

UBCOD450804

1/4

6

8

46

20

UBCOD451004

1/4

6

10

43

20

UBCOD451006

3/8

10

10

43

22

UBCOD451204

1/4

6

12

52

24

UBCOD451206

3/8

10

12

52

25

UBCOD451406

3/8

10

14

52

25

UBCOD451408

1/2

12

14

52

31

UBCOD451506

3/8

10

15

56

24

UBCOD451508

1/2

12

15

56

24

UBCOD451608

1/2

12

16

54

25

UBCOD451808

1/2

12

18

61

26

UBCOD451810

5/8

16

18

75

33

UBCOD452008

1/2

12

20

67

35

UBCOD452010

5/8

16

20

81

40

UBCOD452012

3/4

19

20

70

40

UBCOD452210

5/8

16

22

77

34

UBCOD452212

3/4

19

22

77

34

UBCOD452512

3/4

19

25

82

36

UBCOD452516

1"

25

25

82

36

UBCOD452816

1"

25

28

87

44

UBCOD453016

1"

25

30

90

44

UBCOD453520

1"1/4

32

35

99

46

UBCOD453820

1"1/4

32

38

104

51

UBCOD453824

1"1/2

38

38

100

54

UBCOD454224

1"1/2

38

42

113

60

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
