UBC90COMPG

DKR 90° K - BSP FEMALE 90° COMPACT, 60° CONE

DKR 90° K - FEMMINA 90° COMPATTA BSP, CONO 60°

Thread - Filetto:BSP

Norme - Norma:BS 5200

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

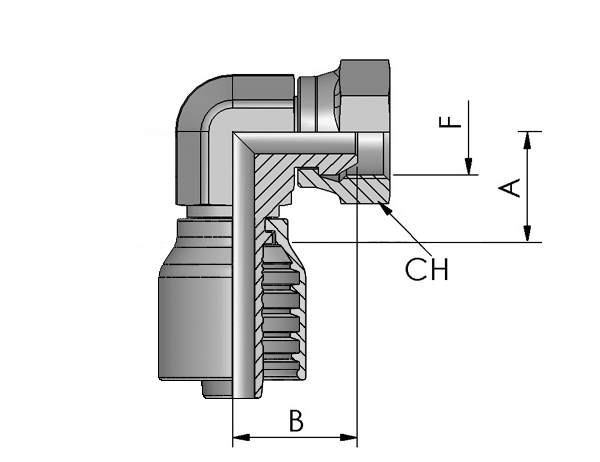

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

UBC90COMPG0404

1/4-19

1/4

6

19

21

23

UBC90COMPG0606

3/8-19

3/8

10

22

22

24

UBC90COMPG0808

1/2-14

1/2

12

27

24

27

UBC90COMPG1212

3/4-14

3/4

19

32

32

35

UBC90COMPG1616

1"-11

1"

25

38

34

40

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

CRIMPED NUT

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

DADO PINZATO
