UBPC45G

DKR 45° - BSP FEMALE 45° THRUST WIRE NUT O-RING, 60° CONE

DKR 45° - FEMMINA 45° BSP DADO SPINATO O-RING, CONO 60°

Thread - Filetto:BSP

Norme - Norma:BS 5200

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

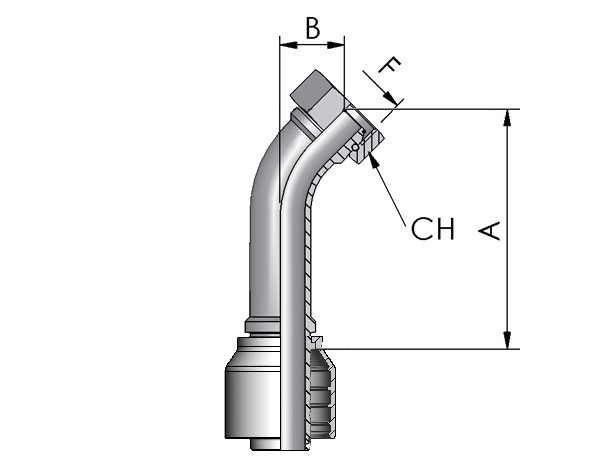

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

B

UBPC45G1212

3/4-14

3/4

19

32

82

30

UBPC45G1616

1"-11

1"

25

38

112

32

UBPC45G2016

1"1/4-11

1"

25

50

116

36

UBPC45G2020

1"1/4-11

1"1/4

32

50

134

37

UBPC45G2424

1"1/2-11

1"1/2

38

55

122

48

UBPC45G3224

2"-11

1"1/2

38

70

155

44

UBPC45G3232

2"-11

2"

51

70

143

55

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
