UBFJSDE

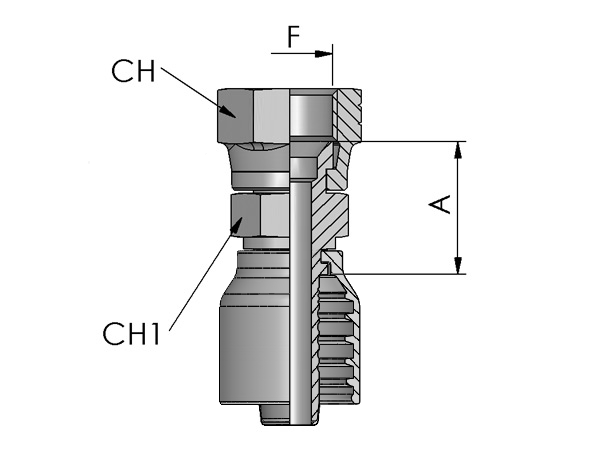

JIST - JIS TOYOTA FEMALE DOUBLE HEXAGON, 60° CONE

JIST - FEMMINA JIS TOYOTA DOPPIO ESAGONO, CONO 60°

Thread - Filetto:BSP

Norme - Norma:

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

CH1

A

UBFJSDE0404

1/4-19

1/4

6

19

17

21,5

UBFJSDE0606

3/8-19

3/8

10

22

19

22,5

UBFJSDE0808

1/2-14

1/2

12

27

22

26

UBFJSDE1212

3/4-14

3/4

19

32

27

31

UBFJSDE1616

1"-11

1"

25

41

36

36

UBFJSDE2020

1"1/4-11

1"1/4

32

50

46

40,5

UBFJSDE2424

1"1/2-11

1"1/2

38

55

50

42,5

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO: SAE 100 R1/2T SAE 100 R17/R16S DIN EN 853 1/2SN DIN EN 857 1/2SC 1/2SNK PREMIUM
