UBMSAEGG

STANDARD ORB MALE SWIVEL SAE

MASCHIO GIREVOLE STANDARD ORB SAE

Thread - Filetto:UNF-UN

Norme - Norma:SAE J514/J516

Code article
Codice articolo

Thread
Filetto

Hose
Tubo

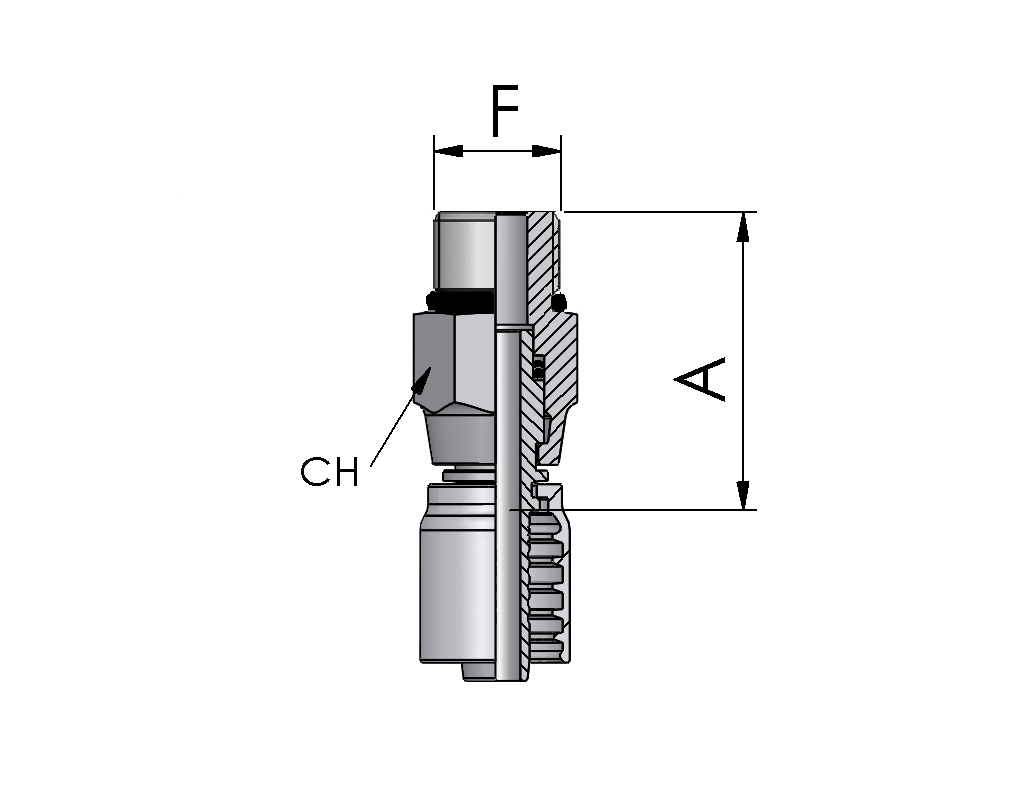

Dimensions (mm)
Dimensioni (mm)



F

Inch/Pollici

DN (mm)

CH

A

UBMSAEGG0604

7/16-20

1/4

6

14

37,4

UBMSAEGG1004

9/16-18

1/4

6

17

42,5

UBMSAEGG1006

9/16-18

3/8

10

17

42,5

UBMSAEGG1206

3/4-16

3/8

10

22

47,5

UBMSAEGG1208

3/4-16

1/2

12

22

49,6

UBMSAEGG1608

7/8-14

1/2

12

27

50,6

UBMSAEGG1610

7/8-14

5/8

16

27

50,8

UBMSAEGG2008

1"1/16-12

1/2

12

32

58

UBMSAEGG2012

1"1/16-12

3/4

19

32

59,6

FOR HOSE:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM

PER TUBO:
SAE 100 R1/2T
SAE 100 R17/R16S
DIN EN 853 1/2SN
DIN EN 857 1/2SC
1/2SNK PREMIUM
